Transom Clamp 2x2 inches Square Design

Transom Glass Clamp 2x2 swivel - Square

SKU:
TCS
Availability:
In Stock
$26.00 - $29.00
Weight:
0.70 KGS
Width:
5.10 (cm)
Height:
5.10 (cm)
Depth:
1.00 (cm)
Current Stock:
Adding to cart… The item has been added
Description

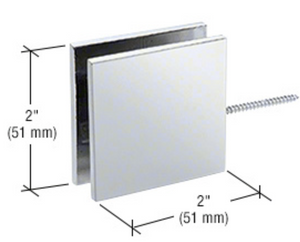

Transom Clamp 2x2 inches. Square edges. Center Swivel.

This product is designed to a moveable transom to a fixed glass panel.

Available in Chrome, Brushed Nickel, Matte Black and Brushed Gold / Satin Brass Finishes

It consists of two single hole glass clamps ( GC1H )joined by a bolt and lock nut and separated by one or two #10 nylon washers.



  • Solid Brass Body
  • Fine Electroplate Finish - Salt water Spray Tested
  • 3 Yr Guaranty
  • Center Nylon Washer Swivel with Locknut

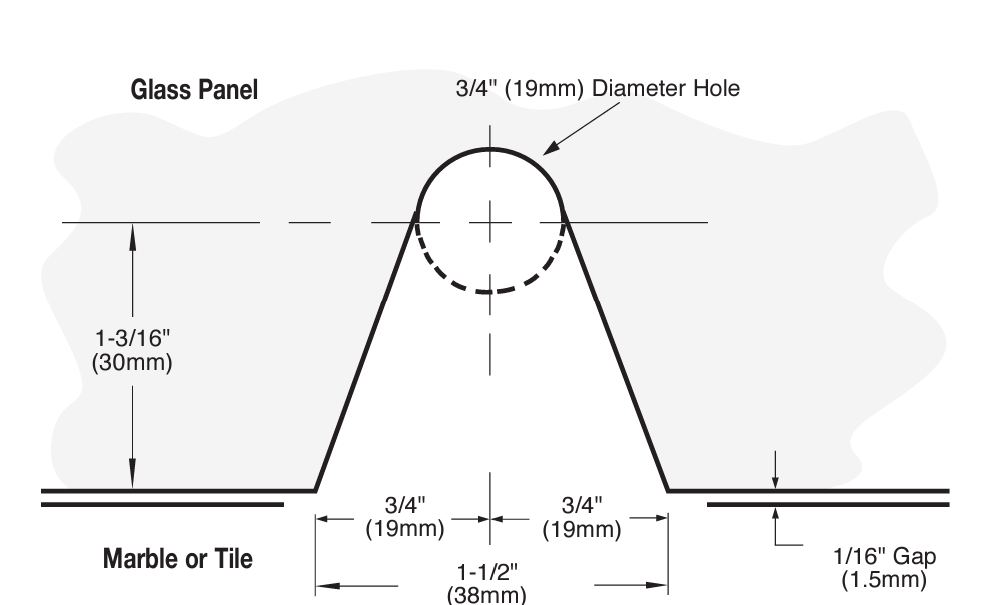

Cutout - both pieces of glass require the cutout below

Deduction

The gap between the panels should be 1/8th"

Warranty
Product is warranted against manufacturer's defect for a period of three years from date of purchase.
