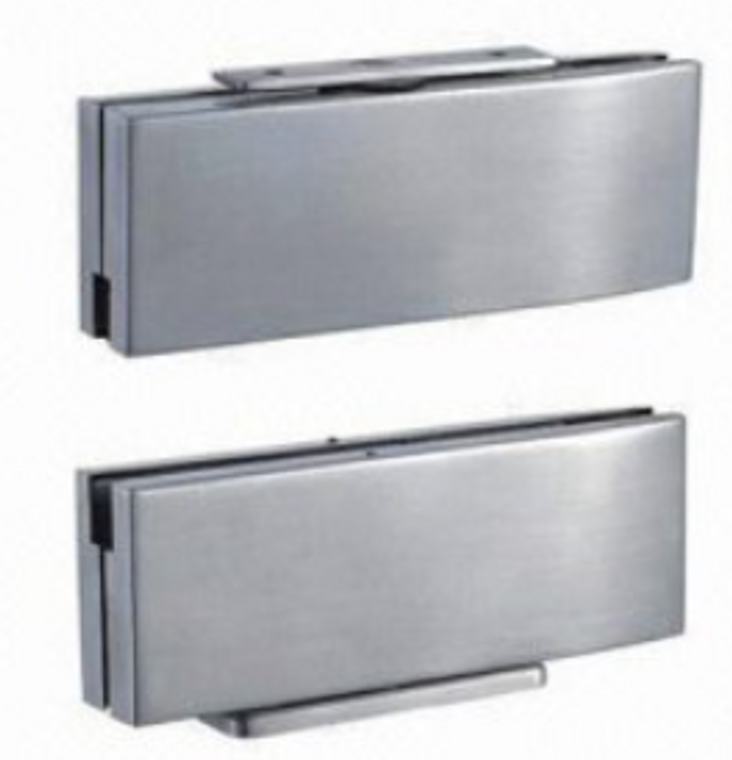

Hydraulic Patch Fitting Kit HEAVY DUTY

SKU:
PATCHSETHD
$273.00
$300.00
(You save $27.00 )
Weight:
3.00 KGS
Width:
45.35 (cm)
Height:
76.00 (cm)
Depth:
177.00 (cm)
Current Stock:
Adding to cart… The item has been added

Heavy Duty Hydraulic Patch Fitting

Supports 150 kg door weight

Operates -45 to +45 degrees Centigrade

Hold open at 90 degrees and self closing with 2 stage adjustable speeds

Adjustable after installation in and out and left to right for easy fit and alignment

Deductions:

  • 7/8 to 1 inch overall height deduction overall required from tight opening
  • 3/8 at the side unless using weatherstripping (CRL CW12) then use 1/2 inch



Cut outs below.
