HEADER KIT 98 INCHES

SKU:
HKIT98-CH
Availability:
y
$97.50
$117.19
(You save $19.69 )
Weight:
3.20 KGS
Width:
3.18 (cm)
Height:
2.30 (cm)
Depth:
250.00 (cm)
Current Stock:
Adding to cart… The item has been added

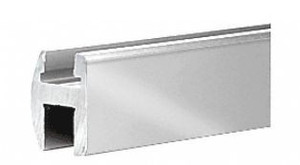

Header kit 98"

Supports doors and side panels either

  • in line between two walls or
  • "neo-angle" (2 panels at 90 degrees with a door on the angle in between)
  • or 90 degree (Adjustable corner connector sold separately)

Can be purchased in 98 or 144 inch lengths.

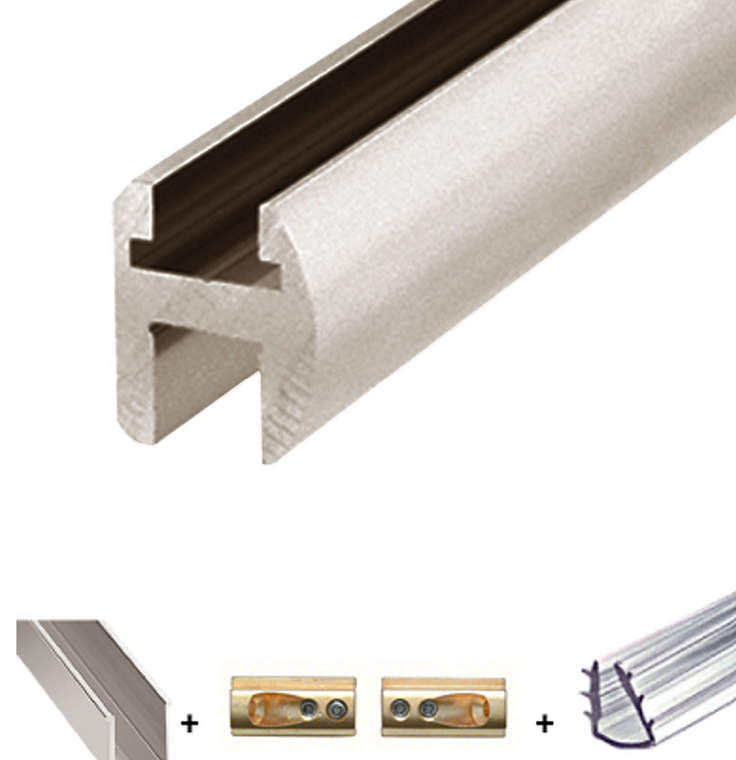

Kit comes with

  • Header Bar (HBARB)
  • Gasket for 10mm glass
  • Filler aluminum for over the door ( FILLERB )
  • 2 brass end brackets ( BWHB )
  • ALL OF THE ABOVE CAN BE PURCHASED SEPARATELY

Can be used with

  • wall mount hinges
  • adjustable 135 degree hinges (for Neo angle installations)
  • 180 degree hinges
  • 90 degree glass to glass hinges

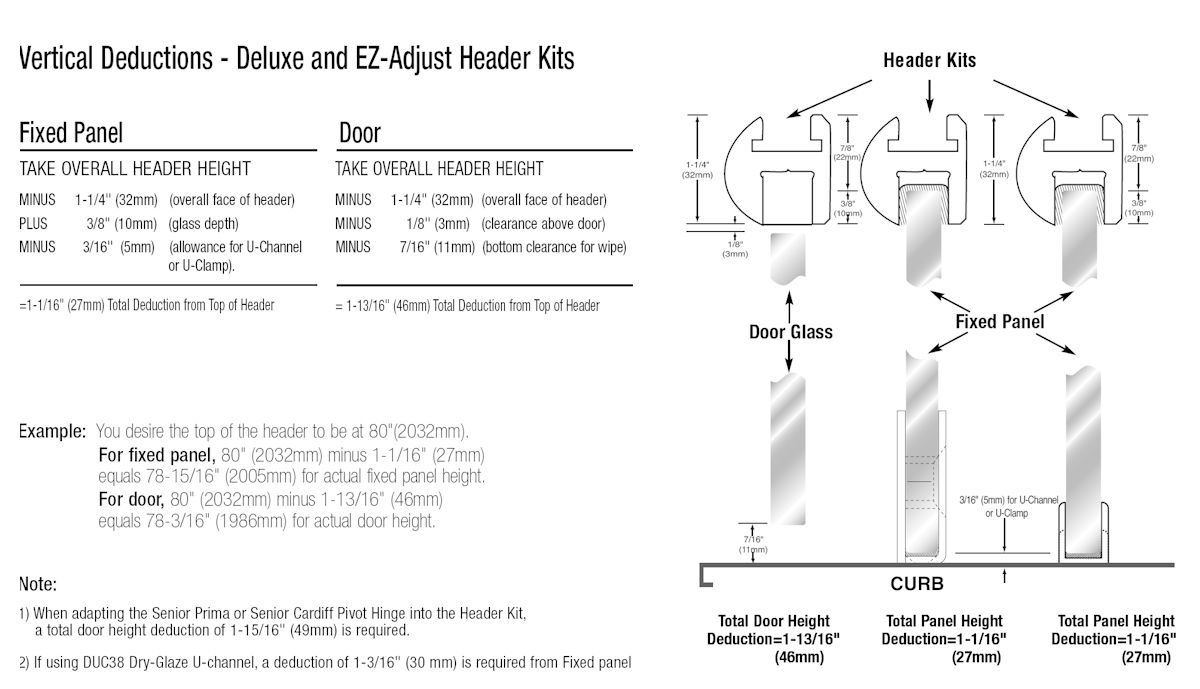

Cut outs and deductions below
