HEADER KIT 144 INCHES

SKU:
HKIT144-CH
Availability:
y
$128.70
Weight:
3.20 KGS
Width:
3.18 (cm)
Height:
2.30 (cm)
Depth:
366.00 (cm)
Current Stock:
Adding to cart… The item has been added

Header kit 144"

Supports doors and side panels either

  • in line between two walls or
  • "neo-angle" (2 panels at 90 degrees with a door on the angle in between)
  • or 90 degree (Adjustable corner connector sold separately)

Can be purchased in 98 or 144 inch lengths.

Kit comes with

  • Header Bar (HBARB)
  • Gasket for 10mm glass
  • Filler aluminum for over the door ( FILLERB )
  • 2 brass end brackets ( BWHB )
  • ALL OF THE ABOVE CAN BE PURCHASED SEPARATELY

Can be used with

  • wall mount hinges
  • adjustable 135 degree hinges (for Neo angle installations)
  • 180 degree hinges
  • 90 degree glass to glass hinges

Cut outs and deductions below

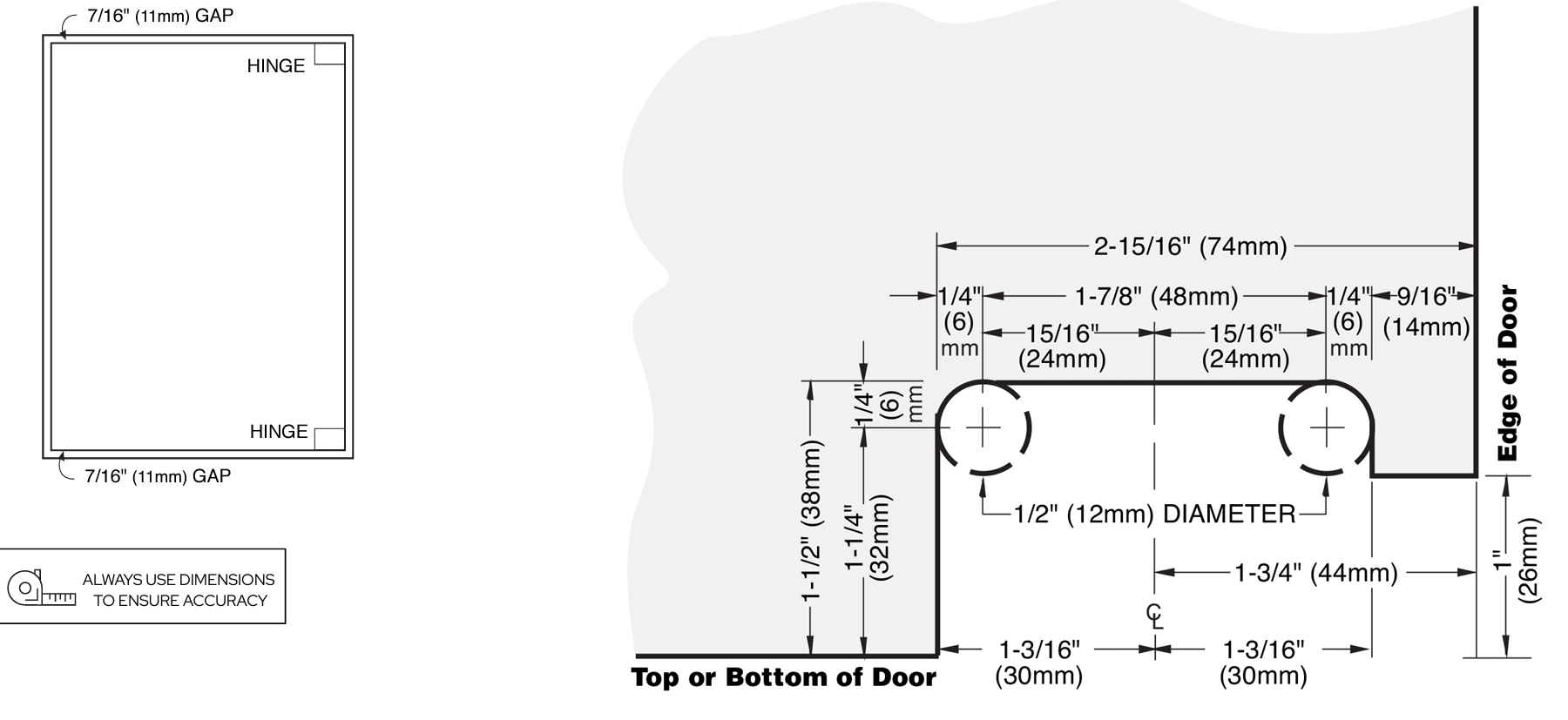

Glass cutout for Pvot hinges commonly used with header kits - note a header adapter block (HAB-BN or HAB-CH) is needed to attach the pvot hinge to the Header bar and the base plate of the hinge needs to be removed.
