Continuous Hinge Heavy Duty Half Surface
Continuous Geared Hinge Half Surface Heavy Duty

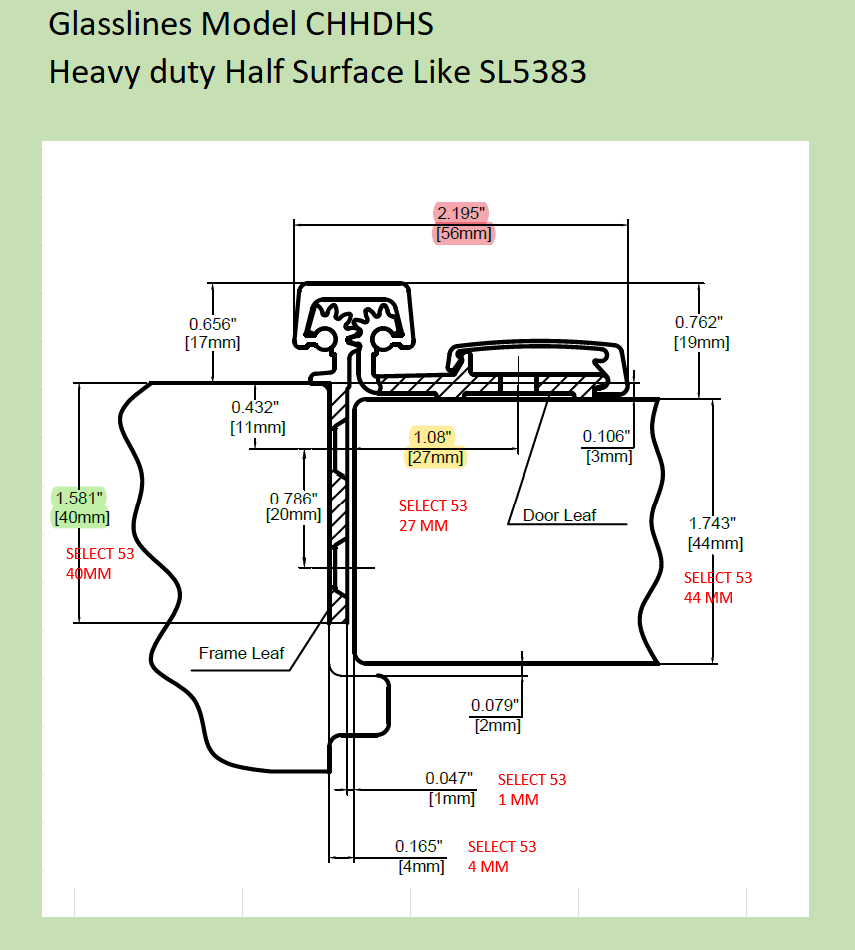

Like SELECT and TIIP model 5383
Application:
- For surface applications where frame face dimension is limited
- Security moldings
- 1/16" (1.5 mm) inset
Certificate:
- BHMA & UL
|
Length (inches) |
Length (mm) |
Sex Bolts (Door) |
Pan Head (Door) |
Screws (Jamb) |
|
83 |
2108 |
8 |
19 |
19 |
|
95 |
2413 |
10 |
19 |
20 |
|
119 |
3023 |
12 |
23 |
23 |
◇CLEARANCE:
- 5/32" (4 mm) minimum recommended hinge side
- Plus standard lockside clearance
◇FASTENERS:
- 1/4-20 x 1-1/4" Sexbolt (Screw + Post)
- #12-24 X 11/16" Flat Head Self-Drill Screws
◇FINISH OPTIONS:
- Clear Anodized Aluminum
- Dark Bronze Anodized Aluminum
◇LENGTH OPTIONS:
- 83" & 95" & 119"& Custom
◇DOOR REINFORCEMENT:
- None needed
◇FRAME REINFORCEMENT:
- None needed to 200 lbs.
- Use 16 gauge channel over 200 lbs
◇FIRERATING:
- Up to 3 hours.
◇SPECIAL FEATURES:
- For new construction
- For renovation with new doors and /or frames
- No mortising of doors or frames required
- Will cover hinge cut outs in frames
- Flush mount no inset
- Frame and door leaf alignment ribs for proper hinge location
