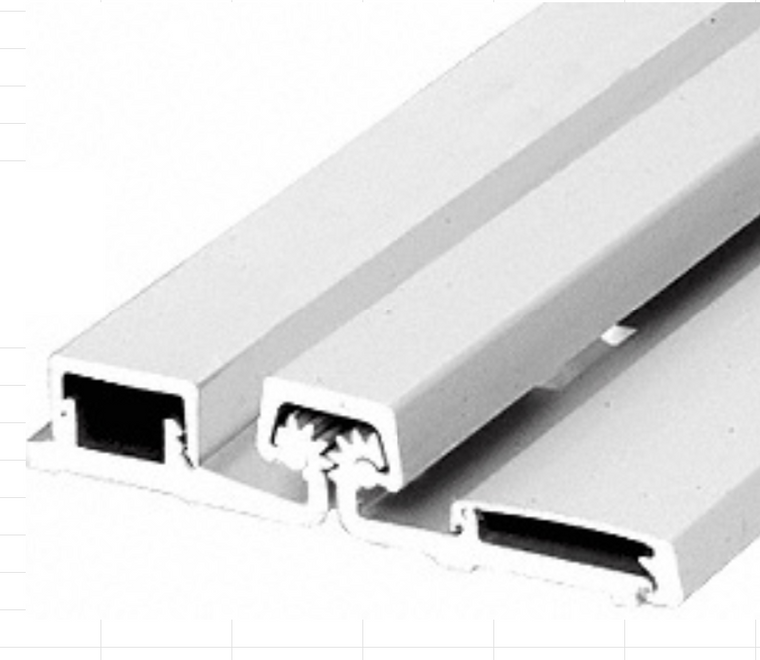

Continuous Hinge Heavy Duty Full Surface narrow Frame
Continuous Hinge Full Surface Heavy Duty Narrow Frame
Same as SELECT and TIIP 5783
Application:

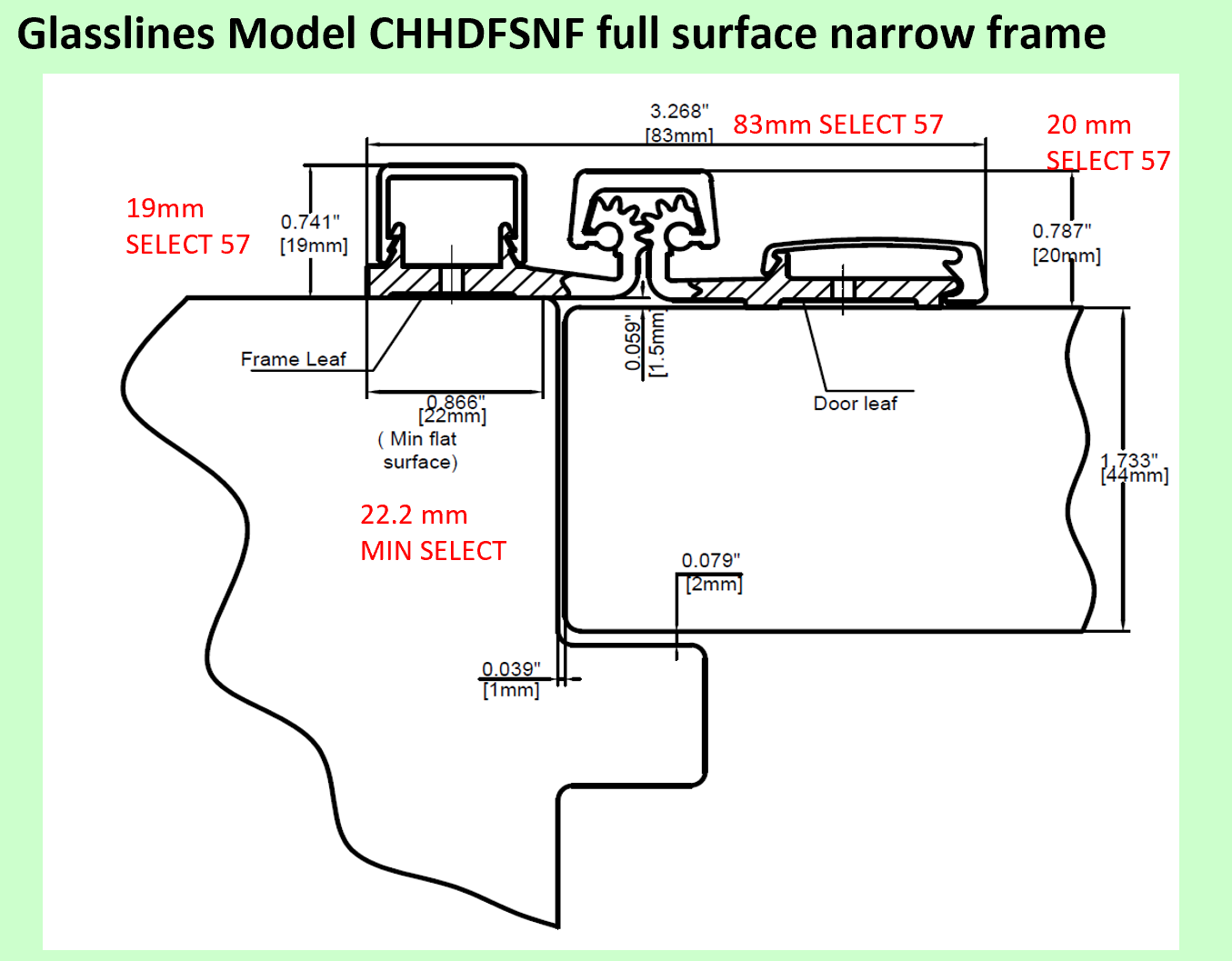

- For surface applications where frame face dimension is limited
- Security moldings
- 1/16" (1.5 mm) inset
Certificate:
- BHMA & UL
|
Length (inches) |
Length (mm) |
Sex Bolts (Door) |
Screws (Jamb) |
|
83 |
2108 |
8 |
38 |
|
95 |
2413 |
10 |
38 |
|
119 |
3023 |
12 |
46 |
◇CLEARANCE
- 1/32" (1 mm) minimum recommended between doors
- Plus standard lockside clearance
- Refer to Door and Frame Dimensioning in the General
◇FASTENERS:
- 1/4-20 x 1-1/4" Sexbolt (Screw + Post)
- #12-24 X 11/16" Flat Head Self-Drill Screws
◇FINISH OPTIONS:
- Clear Anodized Aluminum
- Dark Bronze Anodized Aluminum
◇LENGTH OPTIONS:
- 83" & 95" & 119" & Custom
◇DOOR REINFORCEMENT:
- None needed
◇FRAME REINFORCEMENT:
- None needed to 200 lbs.
- Use 16 gauge channel over 200 lbs
◇FIRERATING:
- Up to 3 Hours.
◇SPECIAL FEATURES:
- Replacement for existing doors and frames
- 7/8" minimum frame
- 1/16" inset
