Continuous Geared Hinge Heavy Duty Full Mortise
Full Mortise (Fully Concealed) Heavy Duty Continuous Geared Hinge

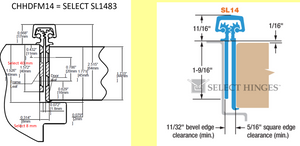

Same as Select 1183 and TIIP 1183
Available to Pre-order
Clear anodized and Dark Bronze in 83 or 96 inch heights for 1 3/4" Aluminum Commercial doors
All hinges are UL and BHMA certified. Source supplies 95% of Continuous hinge imported to North America.
MODEL 004
Full Mortise (Fully Concealed) Continuous geared hinges outperform most other entrance components because the weight of the door is distributed along the full length of the door frame. Utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction.
|
Length (inches) |
Length(mm) |
Hole Count (Door) |
Hole Count (Jamb) |
|
83 |
2108 |
19 |
19 |
|
95 |
2413 |
20 |
20 |
|
119 |
3023 |
23 |
23 |

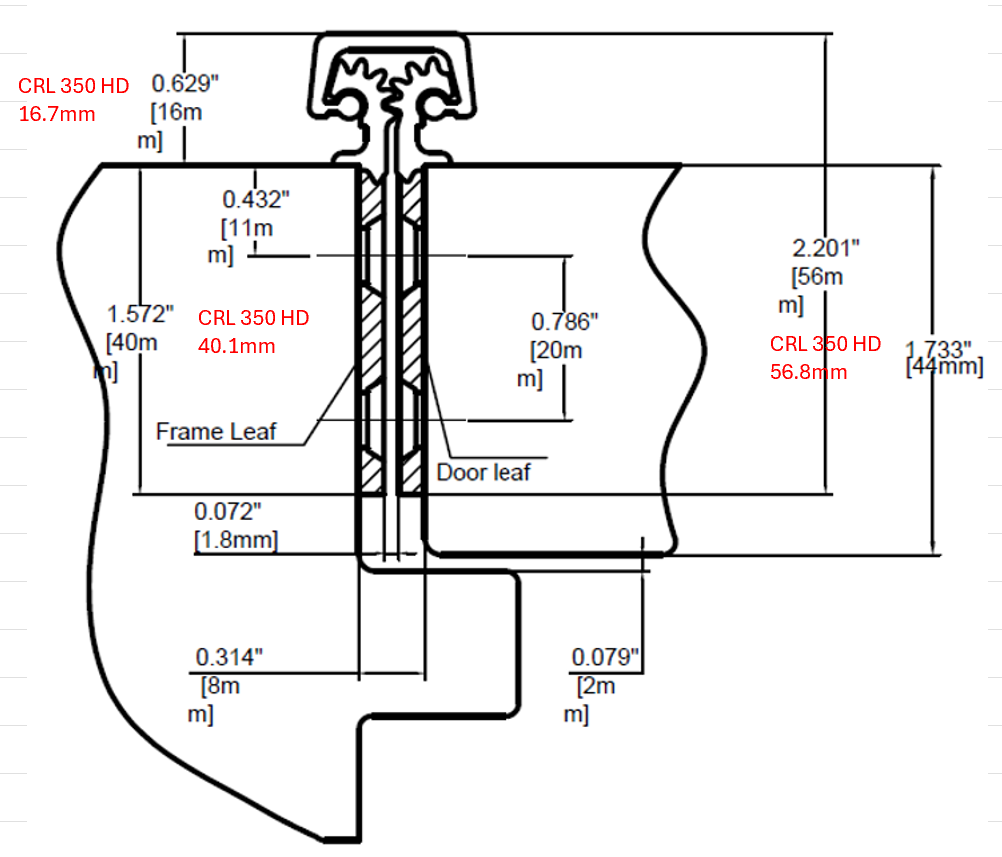

CLEARANCE:
- 5/16" (8 mm) hinge side
- Plus standard lockside clearance
◇FASTENER: - #12-24 X 11/16" Flat Head Self-Drill Screws
◇FINISH OPTIONS:
- Clear Anodized Aluminum
- Dark Bronze Anodized Aluminum
◇LENGTH OPTIONS: - 83" & 95" & 119" & Custom
◇DOOR REINFORCEMENT:
- None needed to 200 lbs
- Use 16 gauge channel over 200 lbs
◇FRAME REINFORCEMENT:
- None needed to 200 lbs
- Use 16 gauge channel over 200 lbs ◇FIRE RATING: - Up to 3 Hours.
◇SPECIAL FEATURES:
- For New Construction and renovation with new door and/or frames
- No mortising of doors or frame required
- Will cover hinge cut outs in frames
